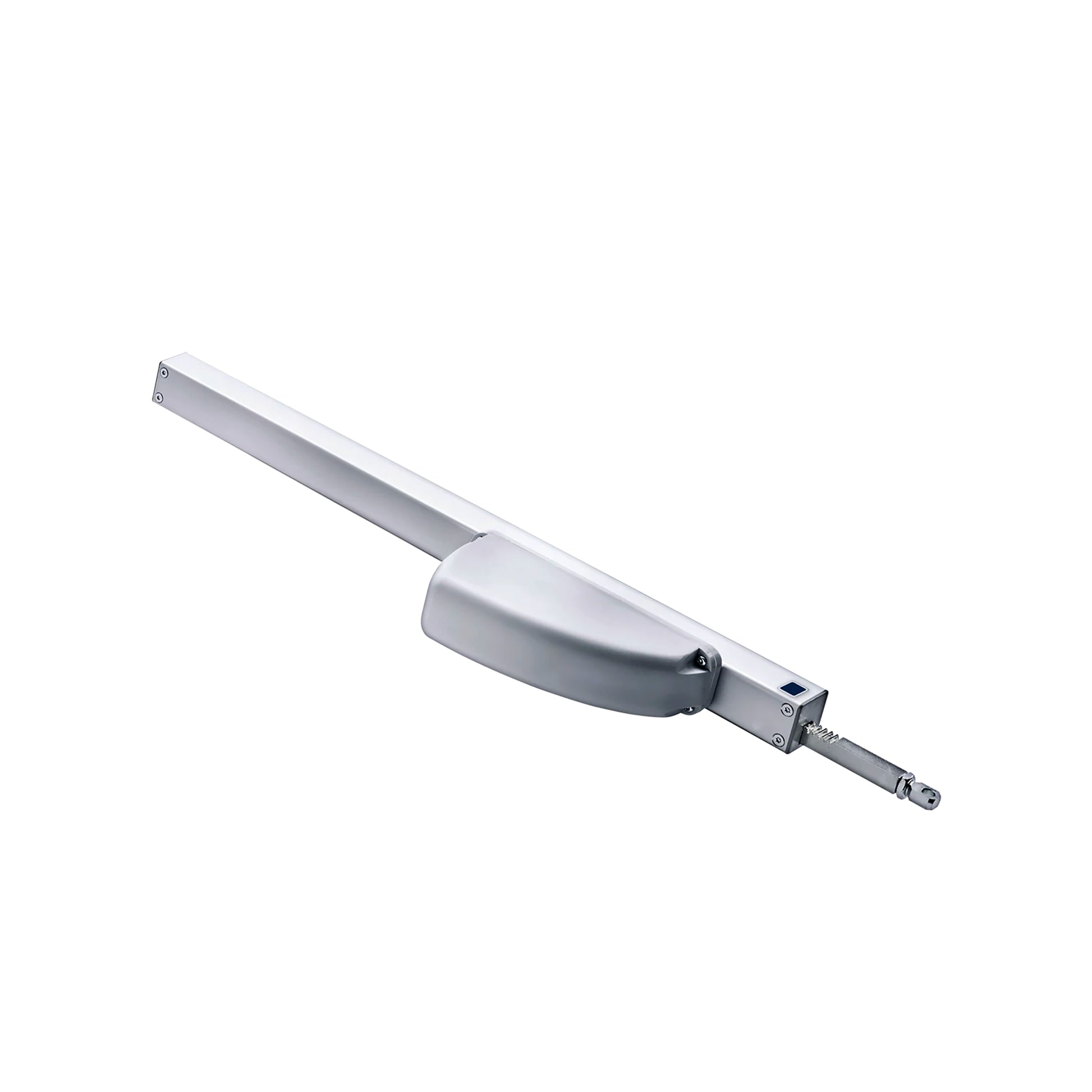

Aumuller LKS S2 Rack Actuator
Available in stock
The LKS S2 System synchronises two drives seamlessly using a mechanical connecting shaft, eliminating the need for expensive electronic controls. Built-in electronic load cut-off protection safeguards the actuator from overload across the entire stroke, ensuring reliable operation and extended service life. Simple, smart engineering for demanding applications.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Specification | Details |
|---|---|
| Product Name | LKS S2 24 V DC |
| Area of Application | Ventilation, SHEV |
| Variants | Stand-alone |
| Electronics | S2 - integrated load dependent electronics in OPEN/CLOSE direction |
| Rated Voltage | 24 V DC |
| Cut-Off Current | 0.8 A |
| Stroke | 100 – 1000 mm |
| Force (Push / Pull) | 550 / 550 N |
| Speed (Open / Close) | 6.0 / 6.0 mm/s |
| Extension Mechanism | Chromated steel rack |
| Housing (W × H × L) | Anodised aluminium and plastic, 30 × 30 mm, length stroke dependent |
| Connection Cable | Halogen free, grey, 2×0.75 mm², length 1 m |
| Protection Rating | IP 54 |
Discover more in our FAQ
Our commitment to technical excellence and exceptional customer service has made us a trusted name in the industry. For professional guidance on your ventilation project, contact us today.
What is an actuator on a window?
What is an actuator on a window?
A window actuator is a device installed on a window that allows it to open and close automatically, eliminating the need for manual operation. They are ideal for hard-to-reach windows and rooflights, multiple windows that need to operate simultaneously, or buildings aiming to take advantage of automated windows and enhanced natural ventilation.
What are the key types of window actuators?
What are the key types of window actuators?
- Electric Chain Actuator: Pushes/pulls the window using a chain; good for medium-sized windows; smooth and quiet.
- Linear/Spindle Actuator: Uses a screw-like spindle to extend/retract; precise and robust; supports heavier windows.
- Folding Arm Actuator: Uses a hinged arm to swing the window open; allows wide openings; good for heavy or outward-opening windows.
What to consider when choosing a window actuator?
What to consider when choosing a window actuator?
When selecting a window actuator, keep the following in mind:
- Window Type & Size - Make sure the actuator is suitable for the window's design, dimensions, and weight.
- Force Requirements - Choose an actuator capable of providing enough force for smooth and reliable operation.
- Voltage & Power Supply - Decide between 24V or 230V options depending on your building's electrical setup.
- Mounting & Aesthetics - Consider available space and how visible the actuator will be.
Who can install a window actuator?
Who can install a window actuator?
Window actuators, used for high-level windows or roof vents, can be installed by qualified professionals such as window automation specialists, automated ventilation technicians, glaziers, or electricians.
