Comfort Vent System Rain & Temperature Control
Available in stock

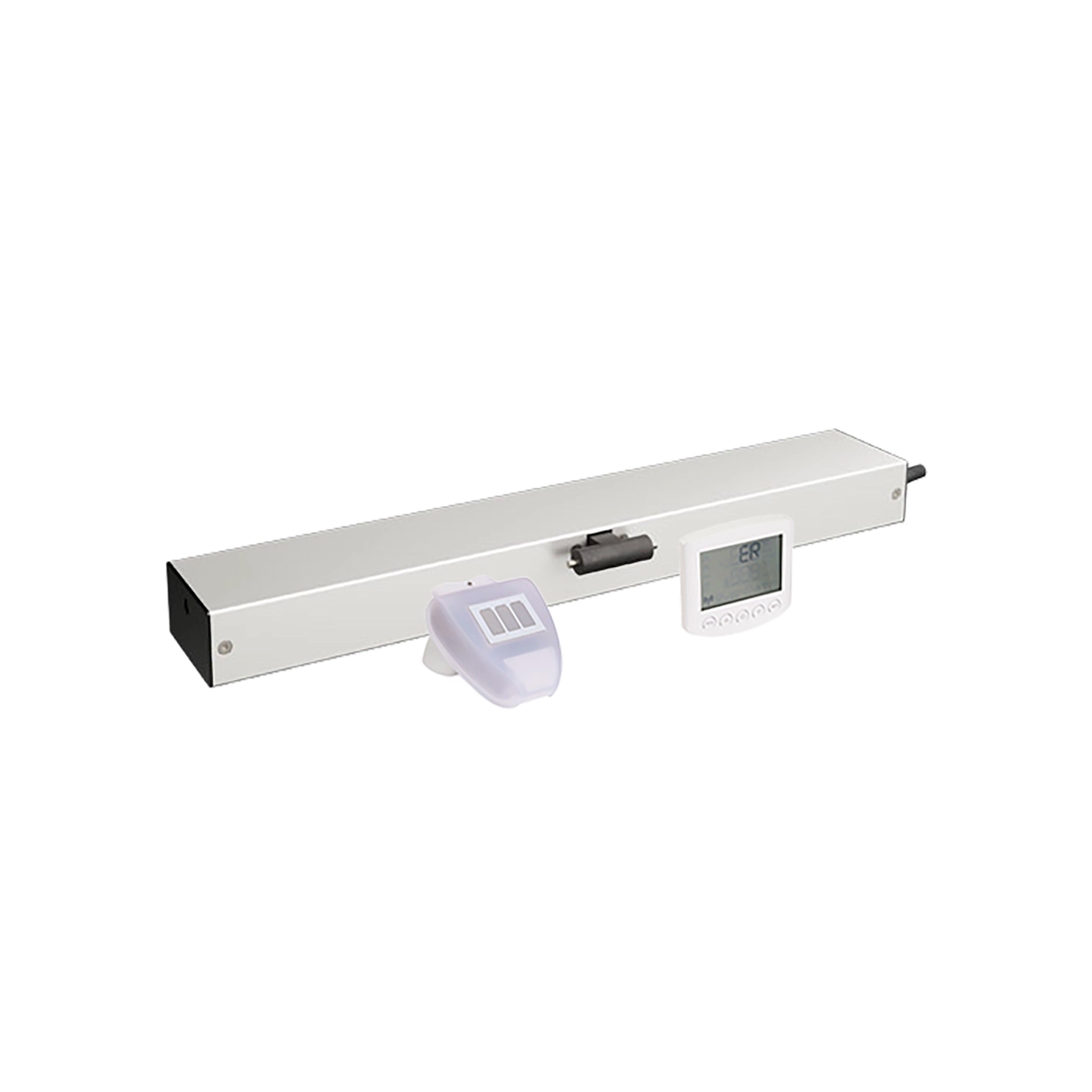

Comfort Vent System including 1 x Micro Evo2 chain actuator and 1 x EVC weather station. Designed to operate a single window or roof vent using rain, temperature and wind sensors, with the EVC's built-in switch also allowing manual control.
This intelligent system automatically opens and closes your vent based on real-time weather conditions, protecting your space from rain while optimising temperature and air circulation. The integrated weather station monitors multiple environmental factors, giving you both automated convenience and hands-on control whenever you need it. Perfect for maintaining comfort and preventing moisture buildup in any room with a single vent opening.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Specification | Details |
|---|---|
| Voltage | 230V AC |
| Push Force | 400 N (150–300 mm) / 350 N (450 mm) / 300 N (600 mm) |
| Pull Force | 40 N |
| Opening Stroke | 150–300–450–600 mm (adjustable) |
| Opening Speed | 12.5 mm/s |
| Current Consumption | 0.1 A |
| Operating Conditions | -10°C to +60°C |
| Switch-on Duration | S2 4 min |
| Colour | White RAL 9003, Black RAL 9005, Silver Anodised or custom RAL colour |
| IP Rating | IP 23 |
| Life Span | 10,000 closing and opening movements |
| Delivery Includes | 1 x Actuator, 1 x Pivot Bracket (MICROEVO2SB) |
| Flex Length | 1 m |
| Cable Dimensions | 3-Core (plus 2 communication wires) |
| Min. Window Width | > 50 mm |
| Max. Window Width | < 1300 mm (use multiple actuators if wider) |
| Synchronisation | Yes |
Discover more in our FAQ
Our commitment to technical excellence and exceptional customer service has made us a trusted name in the industry. For professional guidance on your ventilation project, contact us today.
What is an actuator on a window?
What is an actuator on a window?
A window actuator is a device installed on a window that allows it to open and close automatically, eliminating the need for manual operation. They are ideal for hard-to-reach windows and rooflights, multiple windows that need to operate simultaneously, or buildings aiming to take advantage of automated windows and enhanced natural ventilation.
What are the key types of window actuators?
What are the key types of window actuators?
- Electric Chain Actuator: Pushes/pulls the window using a chain; good for medium-sized windows; smooth and quiet.
- Linear/Spindle Actuator: Uses a screw-like spindle to extend/retract; precise and robust; supports heavier windows.
- Folding Arm Actuator: Uses a hinged arm to swing the window open; allows wide openings; good for heavy or outward-opening windows.
What to consider when choosing a window actuator?
What to consider when choosing a window actuator?
When selecting a window actuator, keep the following in mind:
- Window Type & Size - Make sure the actuator is suitable for the window's design, dimensions, and weight.
- Force Requirements - Choose an actuator capable of providing enough force for smooth and reliable operation.
- Voltage & Power Supply - Decide between 24V or 230V options depending on your building's electrical setup.
- Mounting & Aesthetics - Consider available space and how visible the actuator will be.
Who can install a window actuator?
Who can install a window actuator?
Window actuators, used for high-level windows or roof vents, can be installed by qualified professionals such as window automation specialists, automated ventilation technicians, glaziers, or electricians.
